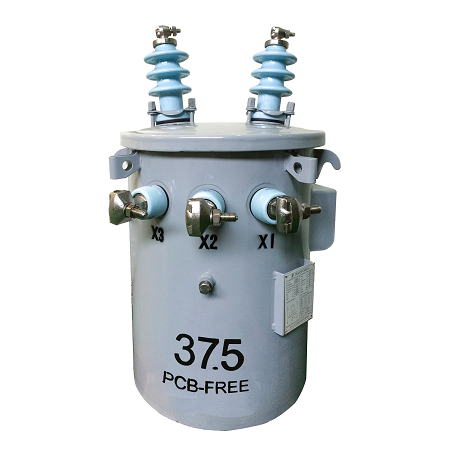

Single-Phase Overhead Distribution Transformer

Linkage Electric manufactures a series of single-phase overhead-type distribution transformers. Single-phase transformers are available as conventional (5~333 kVA) or as completely self-protected (CSP 25~167 kVA), offered in a variety of ratings to meet or exceed the requirements of applicable ANSI® and NEMA® standards. Units designed comply with Chinese Nation Standard and Taipower utilities service standards are also available. CSP transformers have direct connected primary arresters and internal primary voltage fuses, which eliminates the need for separately mounted protective devices and lowers installation costs. The overcurrent interrupter is an overcurrent protective device that protects distribution transformers from damaging overloads and secondary faults, and is also used for switching the transformer “on” or “off.”

  • High quality silicon steel or amorphous ribbon core
  • Meets or exceeds ANSI® and NEMA® standards
  • Tank coating exceeds IEEE Std. C57.12.31™-2010 standard
  • Tin-plated high- and low-voltage bushing terminals to accommodate aluminum or copper conductors
  • Wet process porcelain high-voltage bushings resistant to high-voltage corona
  • Tank grounding provisions
  • Electrical grade mineral oil
  • Heavy-duty lifting lugs and hanger brackets per ANSI® requirements
  • Visible cover ground on units with cover-mounted bushings
  • Recessed tank bottom that offers protection when sliding over rough surfaces
  • Automatic pressure-relief device
  • Arrester mounting and grounding provisions (as per customer requirements)
  • Internal mark indicating the proper oil level
  • Permanently stamped secondary leads to ensure proper identification
  • Corrosion-resistant cover band
