15 kV Fuse Cutout

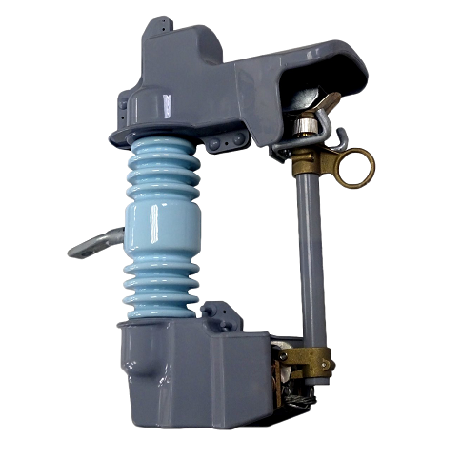

LPI-11.4-002 is a cover protective fuse cutout set developed by Linkage Electric suitable for rainy and humid island climate. It is a one-way, Arc-Quenching, drop-type fuse cutout, with electrical characteristics that comply with the IEEE C37 series and Taiwan Power Company C018 (102-05) 11.4kV 100A standards suitable for 11.4kV three-phase multiple grounding distribution systems. This fuse cutout can be used for line fault, transformer overload, and fault protections. The additional silicon polymer insulated rubber covers can be placed on the upper and lower terminals to effectively reduce the probability of failure when impacted by external objects. These covers protect the fuse cut out but do not affect the original operation function. The basic electrical characteristics of the LPI-11.4-002 are shown in the following table.
